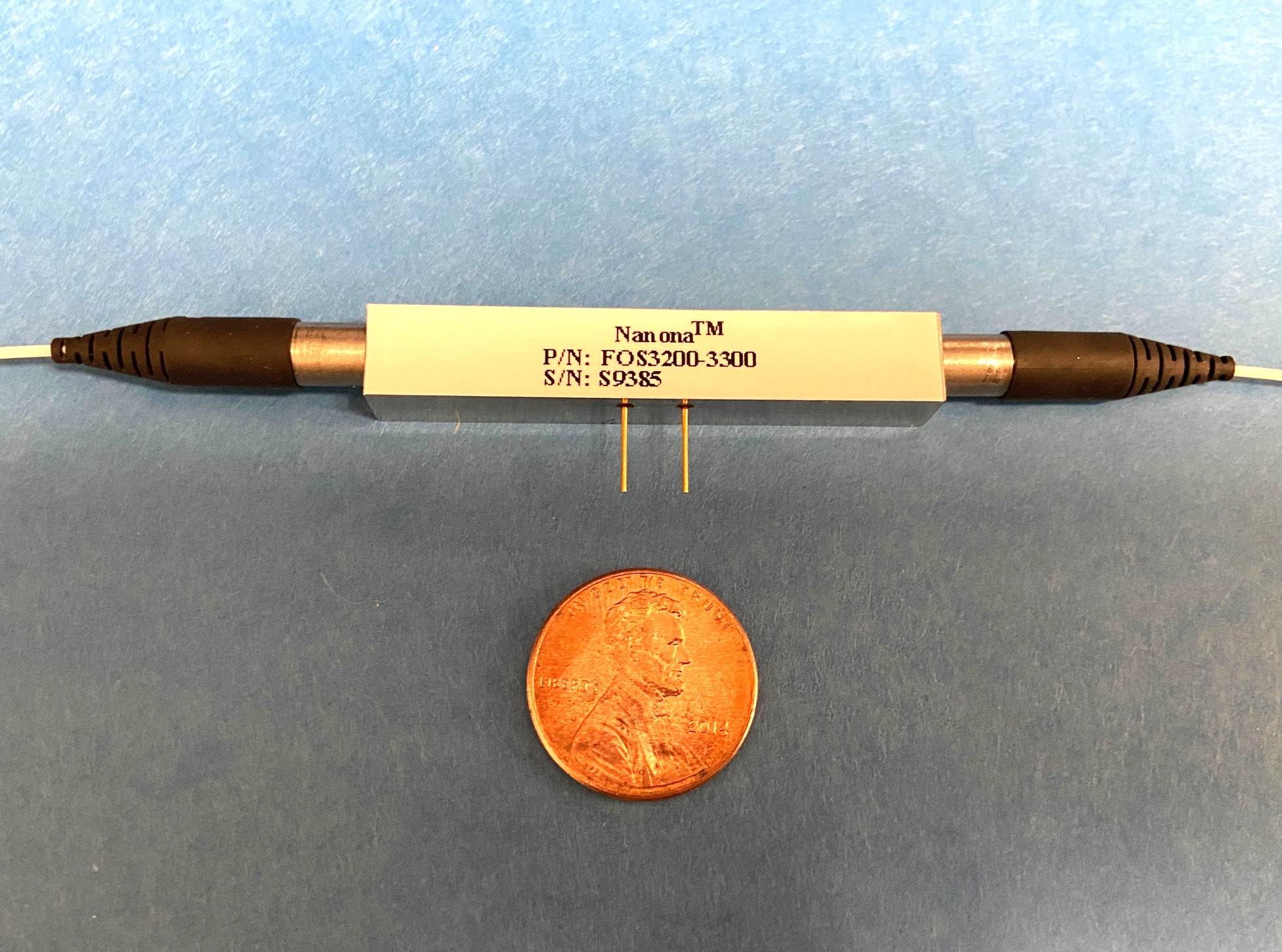

Boston Applied Technologies, Inc. (BATi)'s Nanona™ ultra-fast optical switch redirects the optical signal from one channel to another at speeds faster than 60ns. The switch utilizes the breakthrough OptoCeramic™ electro-optic material developed by BATi researchers for a variety of light-control applications. Combining the solid-state operation inside a free space propagation architecture which eliminates the moving parts and organic materials, the switch enables ultra-fast, reliable switching with low insertion loss and simple driver.
| Features | ||||||
| Excellent optical performance | ||||||
 |
||||||
| High speed operation | ||||||
|
|
||||||
| Low insertion loss | ||||||
|
||||||
| High reliable mechanism | ||||||
|
||||||
| All solid-state construction in a compact package | ||||||
|
||||||
 |
||||
 |
||||
| Attributes1,2 | Performance |
| Wavelength Range3 | 1310nm/1550nm (S,C,L) |
| Insertion Loss | < 1dB |
| Polarization Dependent Loss (PDL) | <0.2dB |
| Cross Talk | > 20dB |
| Polarization Mode Dispersion | < 0.1ps |
|
Response Time |
< 60ns |
| Repetition Rate | Up to 1MHz |
| Input Power | < 300mW |
| Return Loss | >55dB |
| Dimension | 55 x 8x 7mm (for 1X1 SM Switch) |
| Operating Temperature Range | 0oC to 70 oC |
| Storage Temperature Range | -40oC to 85oC |
| Unless otherwise specified, all measurements are at 25oC. | |||
| 1. | |||
| Meets or exceeds Telcordia GR1221 and GR1209 specifications. | |||
| 2. | |||
| 3. | Also available in visible and mid-infrared wavelength. | ||
PM version available upon request. |
|||
