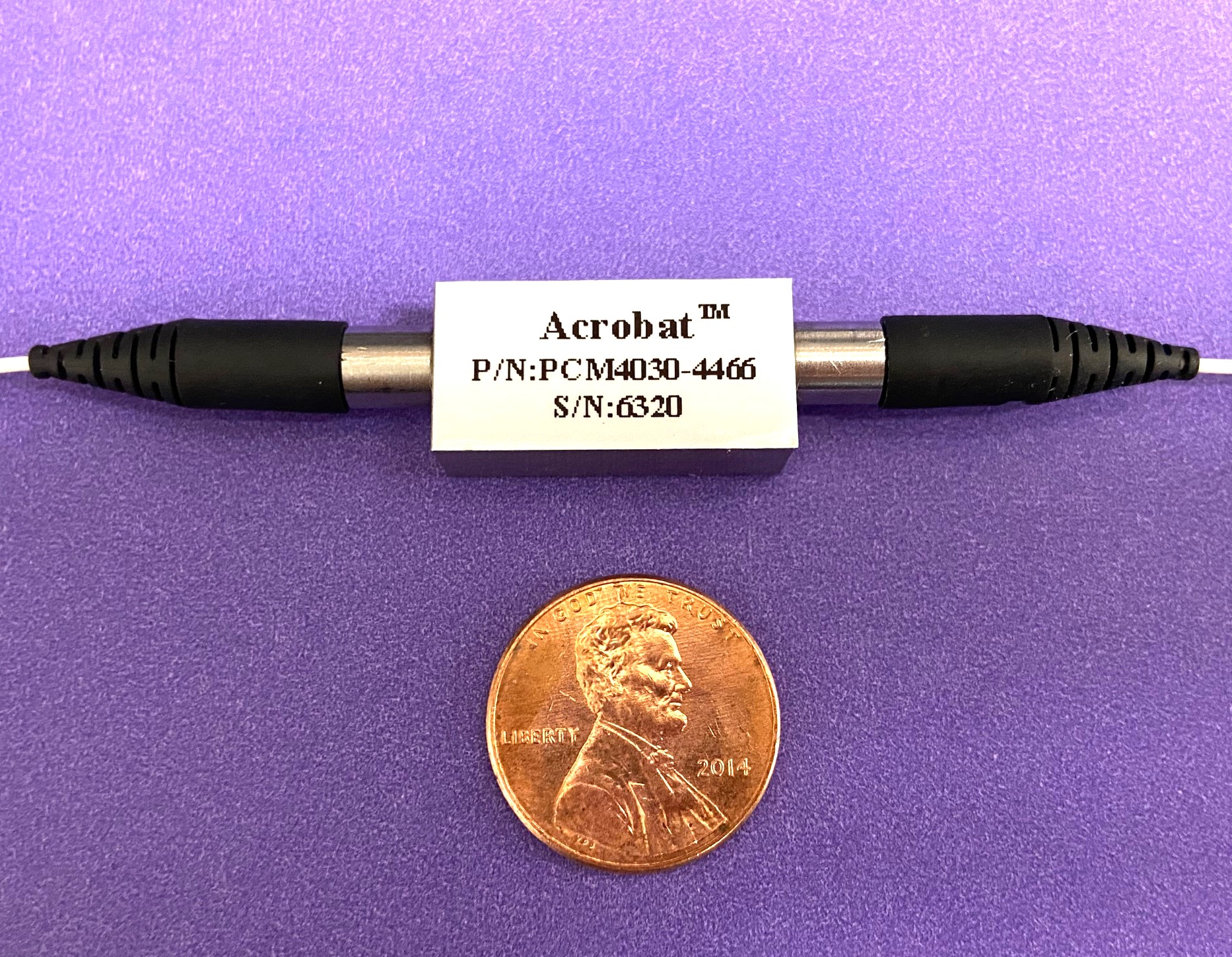

Boston Applied
Technologies' Acrobat™ series of Polarization Controller, or polarization
transformer, converts any input state of polarization to any selectable
output state of polarization by the application of voltage to independently
controlled retardation plates. The device uses OptoCeramic®
electro-optic materials to enable high-speed, solid-state polarization
conversions in a compact package. Options include printed circuit board
mounted voltage drivers as well as complete packaged system for easy lab
bench operation.
| Features | |||||
 |
|||||
| High speed | |||||
|
|
Low loss | ||||
| Compact | |||||
|
|||||
| Solid state | |||||
|
|||||
|
Meets or exceeds Telcordia GR1221 and GR1209 specifications | ||||
 |
||||
 |
||||
| Attributes1,2 | Performance | |
| Wavelength Range3 | 1530~1565nm, 1570~1610nm | |
| Insertion Loss2 | 1dB max, <0.8dB typical | |
| Speed4 | <30µs | |
| Input Power5 | <300mW | |
| Polarization Mode Dispersion | 0.05ps | |
| Polarization Dependent Loss | <0.1dB | |
| Return Loss | >55dB | |
| Activation Loss6 | 0.1dB | |
| Power Consumption7 | 600mW typical | |
| Operating Temperature Range | 0 to 70oC | |
| Storage Temperature Range | -40 to 85oC | |
| Dimensions | 22.3 x 11 x 7.8mm3 | |
| Unless otherwise specified, all measurements are at 0V, 25oC and 1550nm, without connector. | |||
| 1. | |||
| 2. | Maximum of π phase shift of each plate is recommended. | ||
| 3. | 1310nm and other wavelength also available. | ||
| 4. | The optical response time of a single plate to a change of zero to V(π ) | ||
| 5. | Up to 2.7W input power was tested on BATi's devices. | ||
| 6. | At 25oC with V(π). | ||
| 7. | Includes voltage drivers used in the PCM420. | ||
