Boston Applied Technologies'

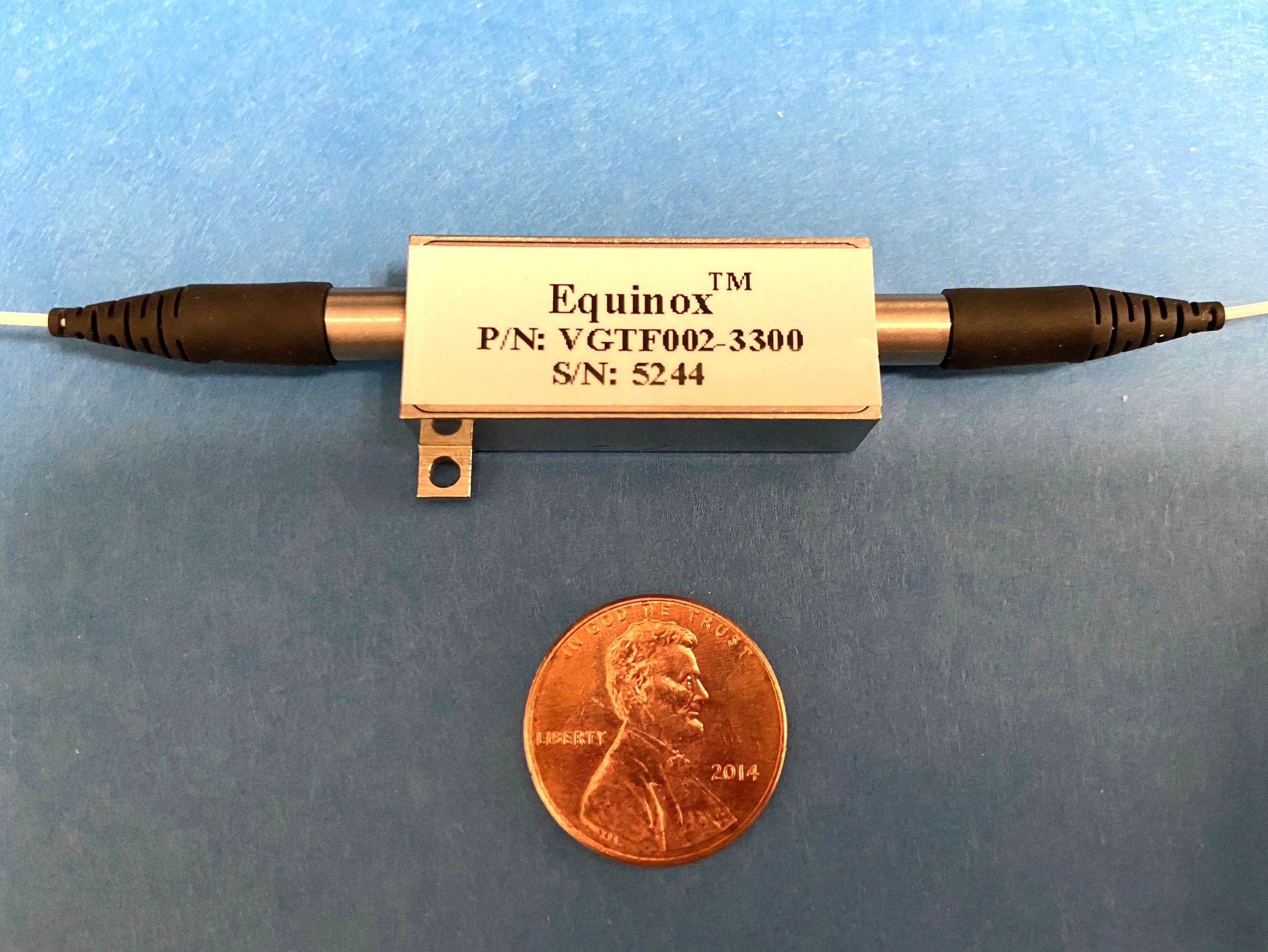

Variable Gain Tilt Filter (VGTF) is designed for dynamically compensating
the gain tilt profile in Erbium Doped Fiber Amplifiers (EDFAs) and power
tilt in multi-channel wavelength division multiplexing (WDM) systems.
Based on OptoCeramicTM technology, VGTF enables dynamically
flattening or tilting the broadband signal in a real-time fashion. BATi's
VGTF contains no moving parts and offers high speed, low insertion loss,
low polarization dependence loss (PDL), and a wide dynamic range. BATi's
advanced micro-optical design also enables the integration of the static
gain flattening filter (GFF) and other components into one compact and
robust package for space, cost saving and performance enhancement.
| Features | ||||||
 |
||||||
| Precise, high-speed, real time gain control | ||||||
|
|
Excellent optical performance | |||||
| Low cost, flexible integration | ||||||
|
||||||
| All solide-state construction in a compact package | ||||||
|
||||||
 |
|||||
 |
|||||
| Attributes1 | Performance | |
| Wavelength Range | 1525 ~1565nm,1570 ~ 1610nm | |
| Insertion Loss | < 1.0dB2 | |
| Dynamic Tilt Range | ± 4dB3 | |
| Response | <30µs | |
| Polarization Dependence Loss | <0.15dB4 | |
|
Polarization Mode Dispersion |
<0.05ps | |
| Polarization Extinction Ratio | > 22dB (PM pigtail) | |
| Slope Resolution | Continuous | |
| Input Power | <500mW | |
| Return Loss | >55dB | |
| Dimensions | 36.6 x 16 x 8mm3 | |
| Operating Temperature Range | 0 to 70oC | |
| Storage Temperature Range | -40 to 85oC | |
| Unless otherwise specified, all measurements are at 25oC. | |||
| 1. | |||
| 2. | Meets or exceeds Telcordia GR1221 and GR1209 specifications. | ||
| 3. | Up to 10dB tilting achievable, 20dB tilting also available upon request. | ||
| 4. | Measured at ± 4dB tilting. | ||
