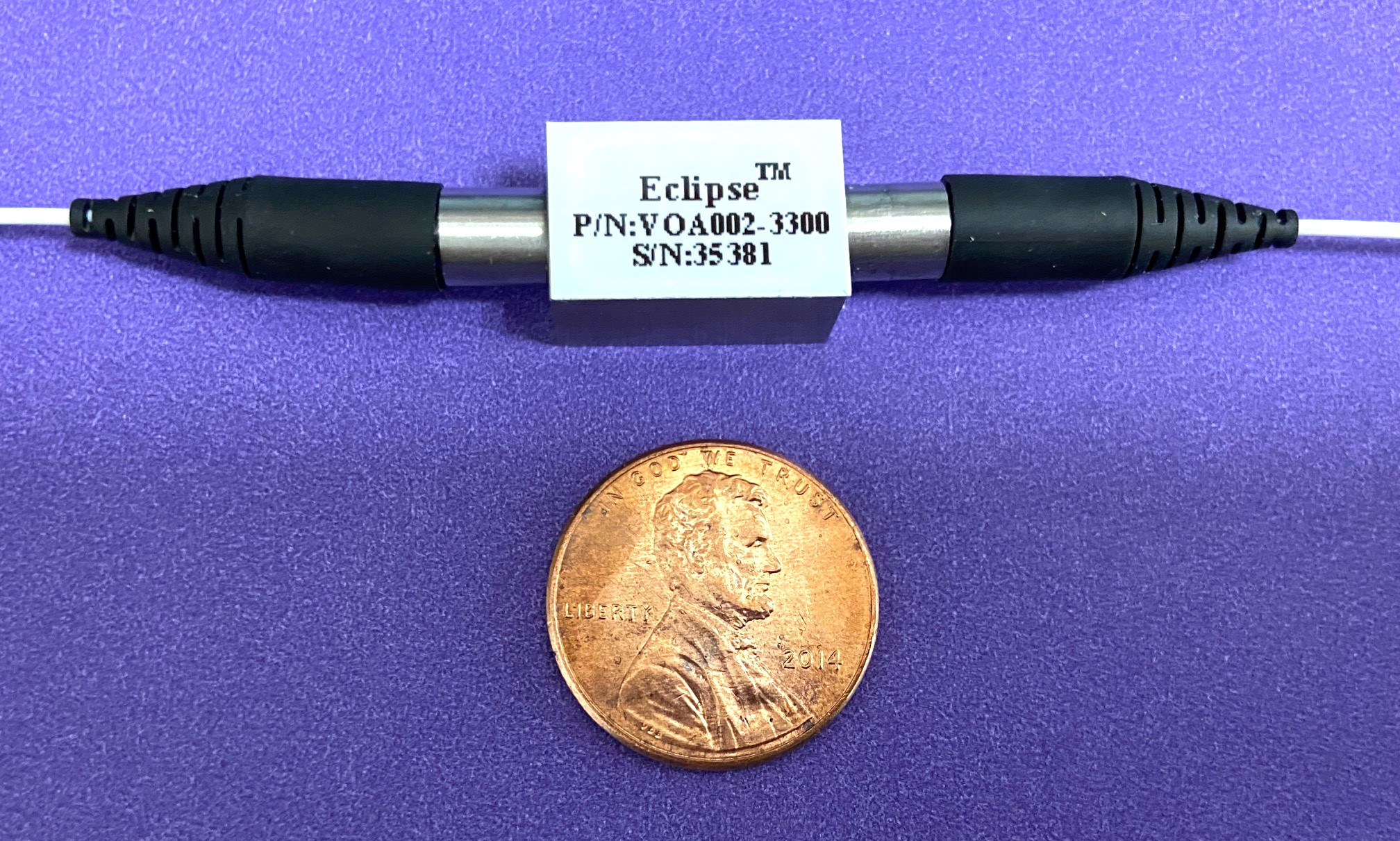

Boston Applied Technologies' Eclipse™ series of Variable Optical Attenuators, including dual-function VOA/PIMs (Polarization Independent Modulators), enable all solid-state, high-speed performance in a very compact package. Depending on the specific application, the VOAs may be set to maintain an electronically adjustable value of either attenuation or output power. The PIMs enable modulation of an optical signal traveling over standard single mode fiber while simultaneously maintaining a specified level of attenuation. All VOAs are electrically controlled, and employ OptoCeramic® electro-optic technology.
| Features | |||||||||
 |
|||||||||
| Precise, high-speed attenuation control | |||||||||
|
|
|||||||||
| Excellent optical performance | |||||||||
| All solid-state construction in a compact rugged package | |||||||||
|
|||||||||
| Superb temperature stability | |||||||||
|
|||||||||
| Meets or exceeds Telcordia GR1221, GR910, and GR1209 specifications | |||||||||
|
|||||||||
| Optional modulator offers polarization insensitive modulation up to 750KHz | |||||||||
|
|||||||||
| Enabling hybrid integration for space and cost saving and performance enhancement | |||||||||
|
|||||||||
 |
|||||
 |
|||||
| Attributes1,2 | VOA001 | VOA002 | PIM001 | PIM002 | |||||
| Wavelength Range | 1310nm/C/L | 1310nm/C/L | 1310nm/C/L | ||||||
| 1310nm/C/L | |||||||||
| Insertion Loss | |||||||||
| <0.9 dB | < 0.6dB | <0.9dB | < 0.6 dB | ||||||
| Dynamic Range | |||||||||
| >20dB | >25dB | >20dB | >25dB | ||||||
| Spectral Flatness @15dB Attenuation | 0.5dB maximum 0.3dB typical | 0.1dB typical | 0.5dB maximum 0.3dB typical | 0.1dB typical3 | |||||
| 0.5dB maximum 0.3dB typical | 0.1dB typical | 0.5dB maximum 0.3dB typical | 0.1dB typical3 | ||||||
| PDL@1550nm and 15dB Attenuation | |||||||||
|
Response Time |
<30µs | <30µs | <30µs | <30µs | |||||
| Input Power | <300mW | <300mW | <300mW | ||||||
| <300mW | |||||||||
| Return Loss | >55dB | >55dB | >55dB | >55dB | |||||
| Device Capacitance | |||||||||
| 500pF typical | 500pF typical | 500pF typical | 500pF typical | ||||||
| Modulation Rate | N/A | 750kHZ | 750kHZ | ||||||
| N/A | |||||||||
| Modulation Depth4 | N/A | N/A | 0.5dB typical | 0.5dB typical | |||||
| Operating Temperature Range | 0oC to 70oC | 0oC to 70oC | 0oC to 70oC | 0oC to 70oC | |||||
| Storage Temperature Range | -40oC to 85oC | -40oC to 85oC | -40oC to 85oC | -40oC to 85oC | |||||
|
Dimensions |
26 x 10 x 9mm3 | 26 x 10 x 9mm3 | 26 x 10 x 9mm3 | 26 x 10 x 9mm3 | |||||
| 1. | Unless otherwise specified, all measurements are at 25oC. | ||
| Meets or exceeds Telcordia GR1221, GR910, and GR1209 specifications. | |||
| 2. | |||
| For applications attenuating a single wavelength utilizing BATi's feedback circuit. Contact BATI for special multi-wavelength VOA002 | |||
| 3. | |||
| 4. | Measured at 3dB attenuation with a 20V sinusoidal signal at 150kHz | ||
