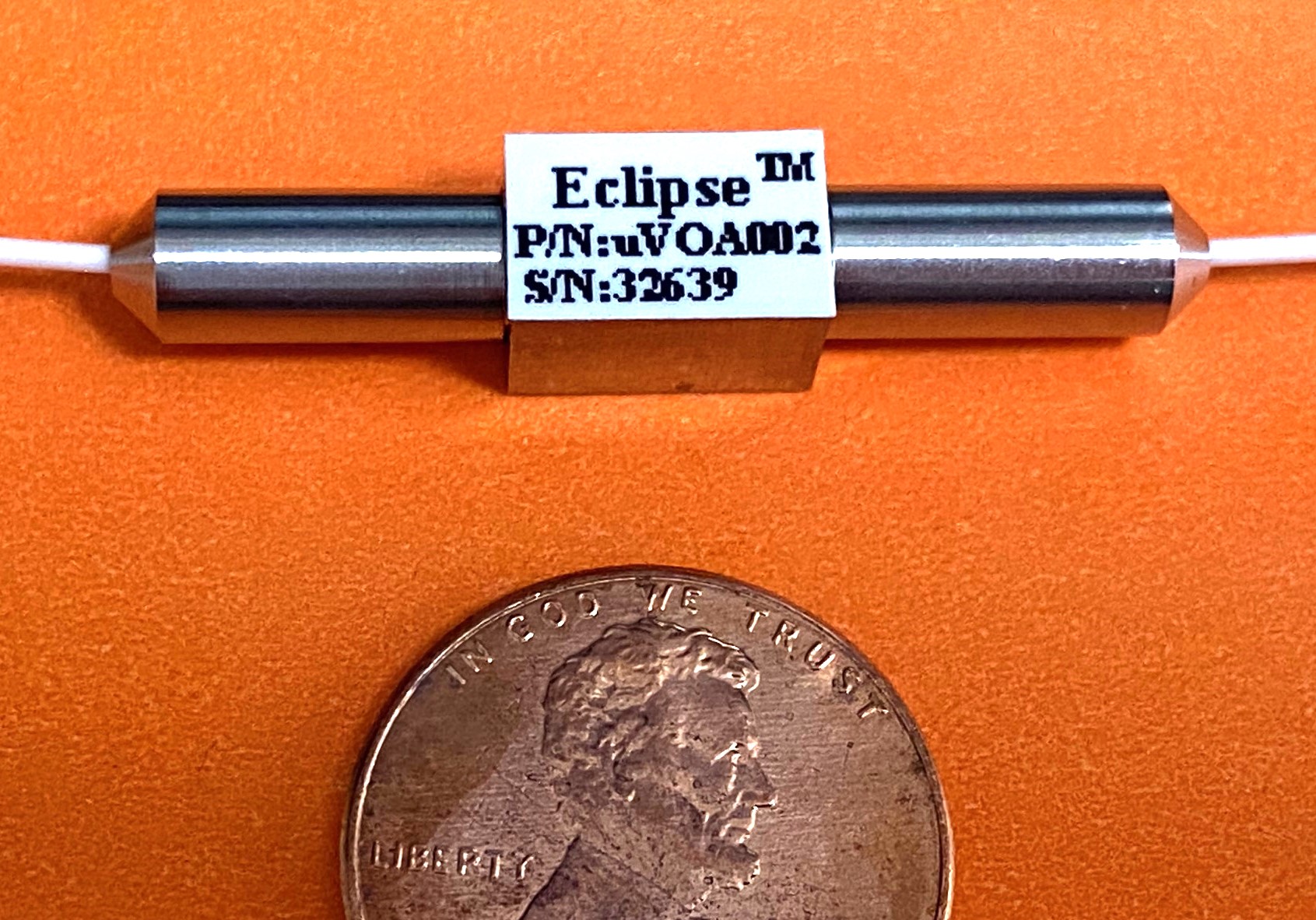

Boston Applied Technologies' Micro Variable Optical Attenuator (µVOA) is a voltage controlled optical variable attenuator. Based on the patented proprietary OptoCeramicTM technology platform, the Eclipse™ VOA provides high speed, high dynamic range, low insertion loss, low polarization dependence loss and the best reliability in a very compact package. The devices also enable polarization independent modulation of an optical signal traveling over standard single mode fiber while simultaneously maintaining a specified level of attenuation.
| Features | |||||||||
 |
|||||||||
| Precise, high-speed attenuation control | |||||||||
|
|
|||||||||
| Excellent optical performance | |||||||||
| All solid-state construction in a compact rugged package | |||||||||
|
|||||||||
| Superb temperature stability | |||||||||
|
|||||||||
| Meets or exceeds Telcordia GR1221, GR910, and GR1209 specifications | |||||||||
|
|||||||||
| Optional modulator offers polarization insensitive modulation up to 1MHz | |||||||||
|
|||||||||
 |
|||||
 |
|||||
| Attributes1,2 | µVOA001 | µVOA002 | |
| Wavelength | 1530~1565,1570~1610nm | ||
| 1530~1565,1570~1610nm | |||
| Insertion Loss3 | <0.9 dB | < 0.6dB | |
| Dynamic Range | >20dB | >25dB | |
| Spectral Flatness @15dB Attenuation | 0.5dB maximum 0.3dB typical | 0.1dB typical4 | |
| 0.1dB typical4 | |||
| PDL@1550nm and 15dB Attenuation | 0.5dB maximum 0.3dB typical | ||
|
Response Time (Full Range)5 |
<30µs | <30µs | |
| Input Power | <500mW | <500mW | |
| Return Loss | >55dB | >55dB | |
| Device Capacitance | 500pF typical | 500pF typical | |
| Modulation Rate | <1MHz | <1MHz | |
| Modulation Depth6 | 0.5dB typical | 0.5dB typical | |
| Operating Temperature Range | 0oC to 70oC | 0oC to 70oC | |
| Storage Temperature Range | -40oC to 85oC | -40oC to 85oC | |
|
Dimensions (Approximate) |
26 x 10 x 9mm3 | 26 x 10 x 9mm3 | |
| Unless otherwise specified, all measurements are at 25oC. | |||
| 1. | |||
| Normally opaque at zero applied voltage for µ VOA001, normally transparent at zero applied voltage for µ VOA002. | |||
| 2. | |||
| 1310nm and other wavelength also available. | |||
| 3. | |||
| For applications attenuating a single wavelength utilizing BATI's feedback circuit. Contact BATI for special multi-wavelength µ VOA002. | |||
| 4. | |||
| Devices with less than 1µs are also available | |||
| 5. | |||
| Measured at 3dB attenuation with a 20V sinusoidal signal at 150kHz | |||
| 6. | |||
